TECNOGEN AP40TL-IPA THREE-PHASE PTO GENERATOR 40KVA
PRODUCT VALID FOR THE GERMAN - AUSTRIAN MARKET
40 (32) kVA (kW) - cosPhi 0.8 400V 50HZ
Sockets:
1x32A 5p h6
1x16A 5p h6
1x16A 3p h6
1x63A 5p h1 spec.
Coupling category 2
Power take-off: 1’,3/8 Z6
Transmission ratio: 1:3.5
No. of revolutions PTO -U/min. (50HZ): 430
Min. power PTO shaft - kW (HP): 45 (61)
Tractor Power (PS) ∼ : > 100
Length: 1000 mm
Width: 670 mm
Height: 1100 mm
weight: 350 kg
- Maximum power three phase (KW)
- 32
- Maximum power three phase (KVA)
- 40
- Sockets configuration
- 1x32A 5p h6 1x16A 5p h6 1x16A 3p h6 1x63A 5p h1 spec.
- Transmission ratio
- 1 : 3.5
- Length (mm)
- 1000
- Width (mm)
- 670
- Height (mm)
- 110
- Weight (Kg)
- 350
- Power take-off
- 1",3/8 Z6
- No. of revolutions PTO -U/min. (50HZ)
- 430
- Min. power at PTO shaft - kW (HP)
- 45 (61)
- Tractor Power (PS) ∼
- Greater than 100
TECNOGEN AP40TL-IPA THREE-PHASE CARDAN GENERATOR 40KVA

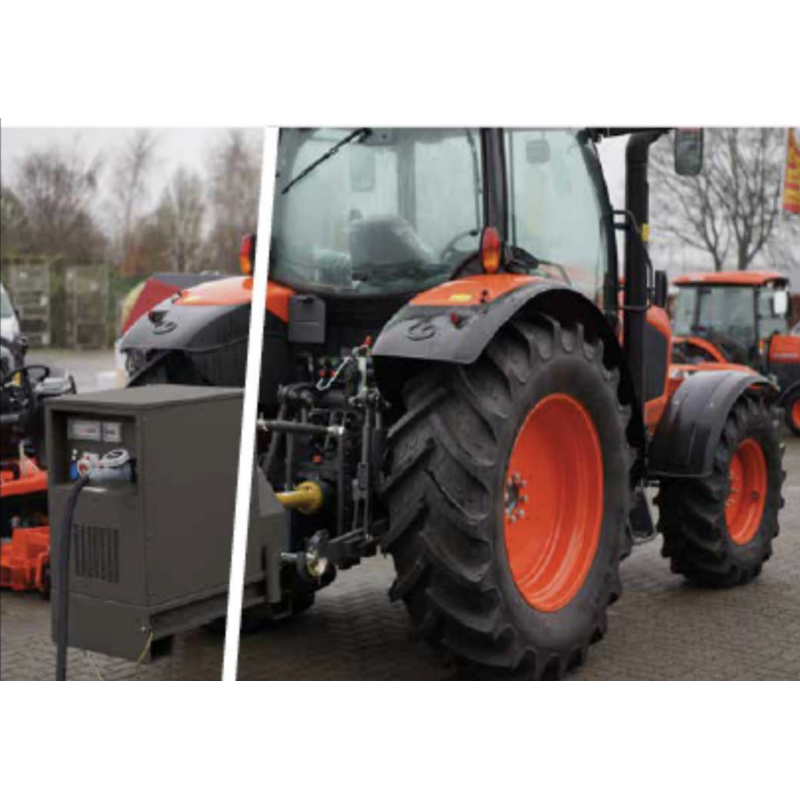

TECNOGEN AP40TL-IPA THREE-PHASE PTO DRIVE GENERATOR 40KVA: Industrial power for versatile applications
The TECNOGEN AP40TL-IPA is a powerful 40 kVA three-phase cardan electric generator designed to provide reliable, continuous power in a wide range of applications. With its robust construction and state-of-the-art technologies, this generator is the ideal choice for construction sites, farms, outdoor events and industries that require an independent and flexible power source.
Key features:
High power: With a power rating of 40 kVA, this generator is capable of powering a wide variety of equipment and machinery, even under demanding load conditions.
Robustness and reliability: Constructed from high-quality materials and equipped with a robust frame, the TECNOGEN AP40TL-IPA is designed to withstand harsh operating conditions for a long time.
Versatility: The presence of several sockets, with different amperatures and configurations, allows a wide range of electrical devices to be connected.
Safety: The generator is equipped with numerous protection devices, such as thermal and differential relays, which guarantee maximum safety for operators and connected equipment.

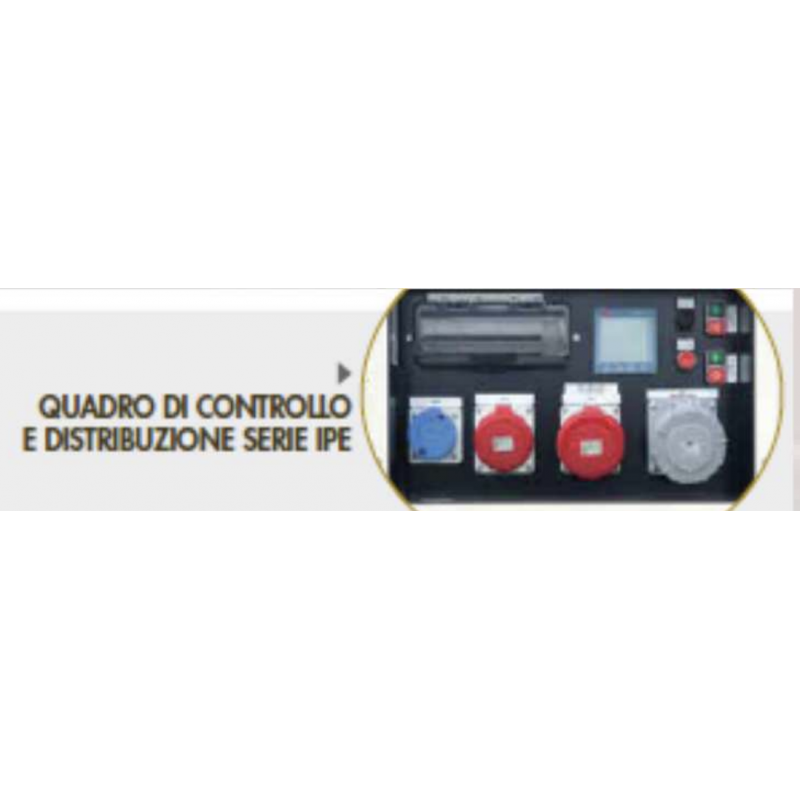

Ease of use: The intuitive control panel and multifunctional digital instrument make it easy to monitor and control the generator.
Technical characteristics:
40 (32) kVA (kW) - cosPhi 0.8 400V 50HZ
Sockets:
1x32A 5p h6
1x16A 5p h6
1x16A 3p h6
1x63A 5p h1 spec.
Coupling category 2
Power take-off: 1’,3/8 Z6
Transmission ratio: 1:3.5
No. of revolutions PTO -U/min. (50HZ): 430
Min. power PTO shaft - kW (HP): 45 (61)
Tractor Power (PS) ∼ : > 100
Length: 1000 mm
Width: 670 mm
Height: 1100 mm
weight: 350 kg
If you are looking for another product then you can see on our catalog other cardan shaft generators.
Images and technical data are not binding.
