Total capacity: 150 l
Power supply 12/24Vdc (12 / 24 Vdc 100-240Vac optional)
Max consumption during defrost: 130W (12/24V)
Max consumption during defrost: 10.5 (12/24V)
Max consumption: 8A (12V) - 4A (24Vdc)
Daily consumption refrigerator / refrigerator: 0.6 kWh/24h (12 / 24 Vdc)
Daily consumption refrigerator / freezer: 1.1 kWh/24h (12 / 24 Vdc)
Daily consumption freezer / freezer: 1.2 kWh/24h (12 / 24 Vdc)
Width: 666 mm
Height: 874 mm
Depth: 590 mm
Net weight: 55 Kg

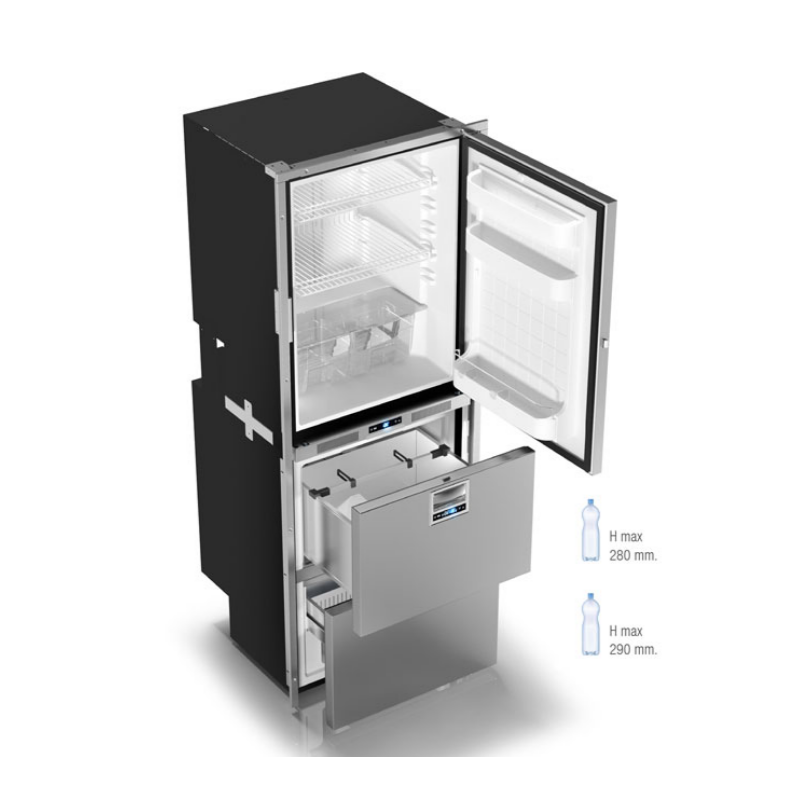

The VITRIFRIGO DRW360A is a high-end drawer refrigerator-freezer designed to meet the needs of the most demanding campers and boaters.
Main features
Total capacity of 307 litres, divided into 157 litres for the refrigerator and 150 litres for the freezer.
12/24Vdc power supply, with the possibility of 100/240Vac power supply as well.
Compact dimensions, with only 682 mm width, 1730 mm height and 592 mm depth.
Stainless steel finish for strength and durability.
Advantages
The all-in-one fridge-freezer combination allows you to have everything you need in one product.
The digital thermostat allows precise control of the set temperature.
Energy consumption is particularly low, thanks to advanced compressor technology.
Applications
The VITRIFRIGO DRW360A is the ideal solution for caravans and boats, but can also be used in other applications, such as workshops or commercial premises.
The VITRIFRIGO DRW360A is an exclusive, high-end product that offers superior performance and functionality. It is the ideal choice for those seeking the ultimate in quality and efficiency for their motorhome or boat.
Technical Specifications VITRIFRIGO DRW360A Refrigerator Freezer:
Total capacity 157+150 litres
Net weight Kg. 100
Power supply 12/24Vdc (optional 12/24Vdc 100-240Vac)
Total width mm. 682
Total height mm. 1730
Total depth mm. 592
Max. consumption during defrost 130W (12/24Vdc) - lower compartment
Max consumption during defrost 10,5 (12/24Vdc) - lower compartment
Max. consumption (Normal operation) 8A (12V) - 4A (24Vdc) - lower compartment
Set +8°C 0.5 kW/h/24h - upper compartment
Set +4°C 0.6 kW/h/24h - upper compartment
Set +2°C 0.7 kW/h/24h - upper compartment
Daily consumption (T=25°C) refrigerator/refrigerator (+4°C / +4°C) 0.6 kWh/24h (12/24Vdc) - lower compartment
Daily consumption (T=25°C) - refrigerator / freezer (+4°C / -18°C) 1.1 kWh/24h (12/24Vdc) - lower compartment
Daily consumption (T=25°C) - freezer / freezer (-18°C / -18°C) 1.2 kWh/24h (12/24Vdc) - lower compartmentTotal capacity litres 157+150
Net weight Kg. 100
Power supply 12/24Vdc (optional 12/24Vdc 100-240Vac)
Total width mm. 682
Total height mm. 1730
Total depth mm. 592
Max. consumption during defrost 130W (12/24Vdc) - lower compartment
Max consumption during defrost 10,5 (12/24Vdc) - lower compartment
Max. consumption (Normal operation) 8A (12V) - 4A (24Vdc) - lower compartment
Set +8°C 0.5 kW/h/24h - upper compartment
Set +4°C 0.6 kW/h/24h - upper compartment
Set +2°C 0.7 kW/h/24h - upper compartment
Daily consumption (T=25°C) refrigerator / freezer (+4°C / +4°C) 0.6 kWh/24h (12/24Vdc) - lower compartment
Daily consumption (T=25°C) - refrigerator / freezer (+4°C / -18°C) 1.1 kWh/24h (12/24Vdc) - lower compartment
Daily consumption (T=25°C) - freezer / freezer (-18°C / -18°C) 1.2 kWh/24h (12/24Vdc) - lower compartment
Are you looking for a product with different technical specifications? HERE you can find the entire range of VITRIFRIGO or other specialized brands.
Images and technical data are not binding.
Total capacity: 150 l
Power supply 12/24Vdc (12 / 24 Vdc 100-240Vac optional)
Max consumption during defrost: 130W (12/24V)
Max consumption during defrost: 10.5 (12/24V)
Max consumption: 8A (12V) - 4A (24Vdc)
Daily consumption refrigerator / refrigerator: 0.6 kWh/24h (12 / 24 Vdc)
Daily consumption refrigerator / freezer: 1.1 kWh/24h (12 / 24 Vdc)
Daily consumption freezer / freezer: 1.2 kWh/24h (12 / 24 Vdc)
Width: 666 mm
Height: 874 mm
Depth: 590 mm
Net weight: 55 Kg
