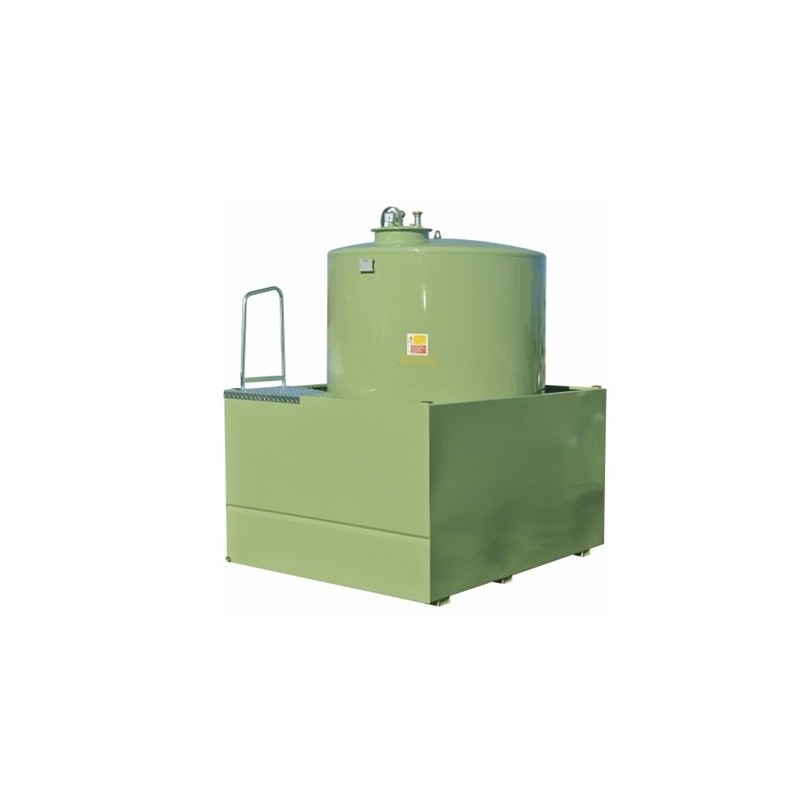

FENZI G5 Tank 500LT

FENZI G5 Tank 500LT

FENZI G5 Cistern 500LT: Complete solution for the safe storage of diesel fuel

The FENZI G5 Cistern 500LT is an above-ground cistern for diesel fuel designed to meet the needs of heating and powering generator sets. Made in compliance with Italian regulations (DM 31/07/1934, DM 28/04/2005, DM 13/07/2011 and DM 22/11/2017), it offers a complete and safe solution for storing diesel fuel.

Materials:

Tank: painted steel sheet

Containment basin: painted carbon steel EN10025 S235JR

Canopy (optional): non-combustible material, galvanised frame, galvanised trapezoidal sheet metal

Components:

Tank

110% containment basin

90% load-retaining valve

External float level indicator

Manhole Ø 420 mm

Eyebolts for vacuum lifting

Drain sleeve for cleaning

Earthing and equipotential bonding socket

1" external suction connection with non-return valve

1" ball valve

1" galvanised steel pipe with flexible end piece

Safety:

110% containment basin to retain any leaks

Drain sleeve for water collection

Venting mushroom with flame breaker mesh

Compliance with Italian regulations

Technical characteristics:

Tank capacity: 500 litres

A: 1000 mm

B: 1500 mm

C: 2100 mm

Intake Inches: 1"

If you are looking for a product like FENZI G4 500LT Cistern with different characteristics, check out HERE.

Images and data purely indicative.
