Tank capacity: 1000 litres
Length: 2000 mm
Width: 1200 mm
Height: 2100 mm
Intake Inches: 1"

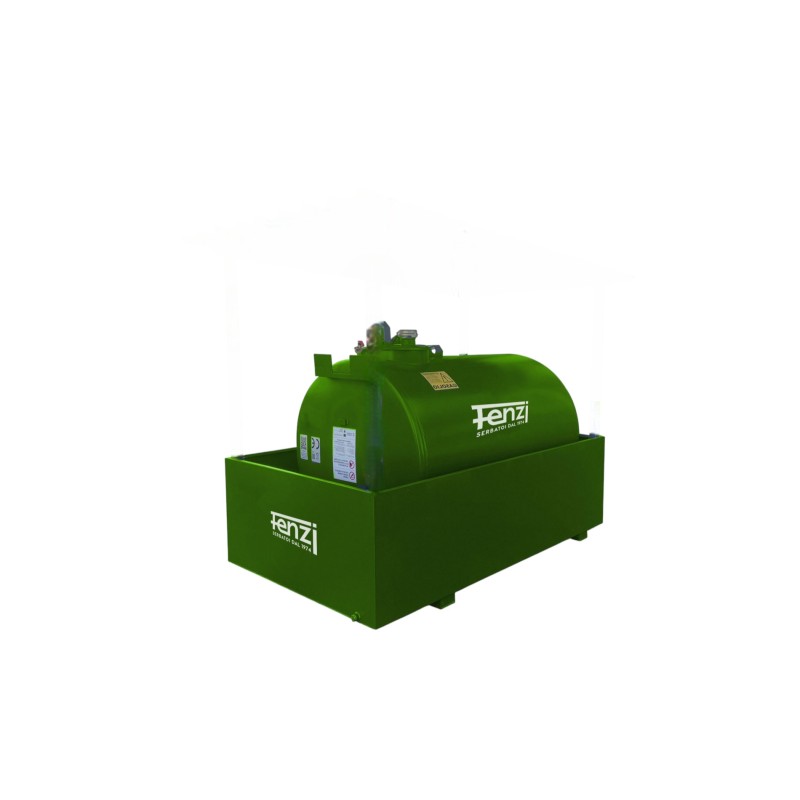

FENZI G5 Cistern 1000LT: Complete solution for the safe storage of diesel fuel
The FENZI G5 Cistern 1000LT is an above-ground cistern for diesel fuel designed to meet the needs of heating and powering generator sets. Made in compliance with Italian regulations (DM 31/07/1934, DM 28/04/2005, DM 13/07/2011 and DM 22/11/2017), it offers a complete and safe solution for storing diesel fuel.
Materials:
Tank: painted steel sheet
Containment basin: painted carbon steel EN10025 S235JR
Canopy (optional): non-combustible material, galvanised frame, galvanised trapezoidal sheet metal
Components:
Tank
110% containment basin
90% load-retaining valve
External float level indicator
Manhole Ø 420 mm
Eyebolts for vacuum lifting
Drain sleeve for cleaning
Earthing and equipotential bonding socket
1" external suction connection with non-return valve
1" ball valve
1" galvanised steel pipe with flexible end piece
Safety:
110% containment basin to retain any leaks
Drain sleeve for water collection
Venting mushroom with flame breaker mesh
Compliance with Italian regulations
Technical characteristics:
Tank capacity: 1000 litres
Length: 2000 mm
Width: 1200 mm
Height: 2100 mm
Intake Inches: 1"
If you are looking for a product like FENZI G5 1000LT Cistern with different characteristics, check out HERE.
Images and data purely indicative.
