FENZI G5 Tank 1500LT

FENZI G5 Cistern 1500LT

FENZI G5 Cistern 1500LT: Complete solution for the safe storage of diesel fuel

The FENZI G5 Cistern 1500LT is an above-ground cistern for diesel fuel designed to meet the needs of heating and powering generator sets. Made in compliance with Italian regulations (DM 31/07/1934, DM 28/04/2005, DM 13/07/2011 and DM 22/11/2017), it offers a complete and safe solution for storing diesel fuel.

Materials:

Tank: painted steel sheet
Containment basin: painted carbon steel EN10025 S235JR
Canopy (optional): non-combustible material, galvanised frame, galvanised trapezoidal sheet metal

Components:

Tank
110% containment basin
90% load-retaining valve

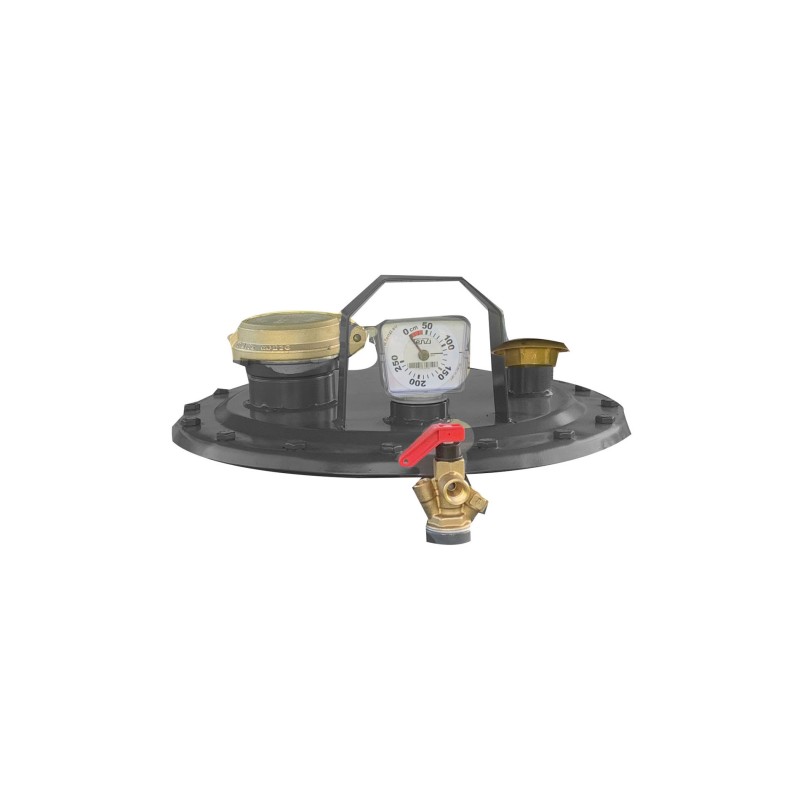

External float level indicator
Manhole Ø 420 mm
Eyebolts for vacuum lifting
Drain sleeve for cleaning
Earthing and equipotential bonding socket
1" external suction connection with non-return valve
1" ball valve
1" galvanised steel pipe with flexible end piece

Safety:

110% containment basin to retain any leaks
Drain sleeve for water collection
Venting mushroom with flame breaker mesh
Compliance with Italian regulations

Technical characteristics:

Capacity: 1500 litres
Length: 2300 mm
Width: 1300 mm
Height: 2100 mm
Intake Inches: 1"

If you are looking for a product like FENZI G5 1500LT Cistern with different characteristics, check out HERE.

Images and data purely indicative.
