TRAILER TRA401 BO2

TRAILER BO2 TRA401

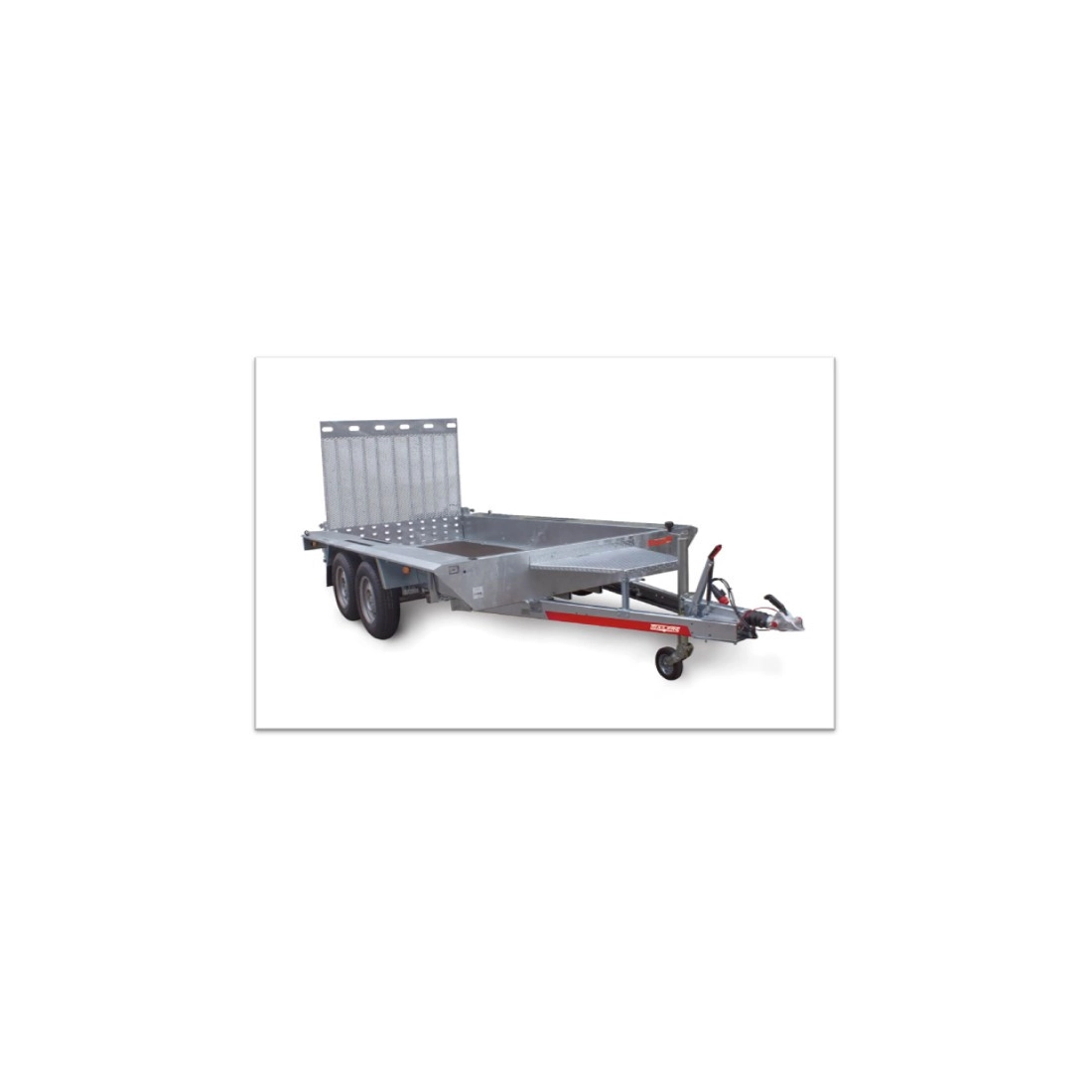

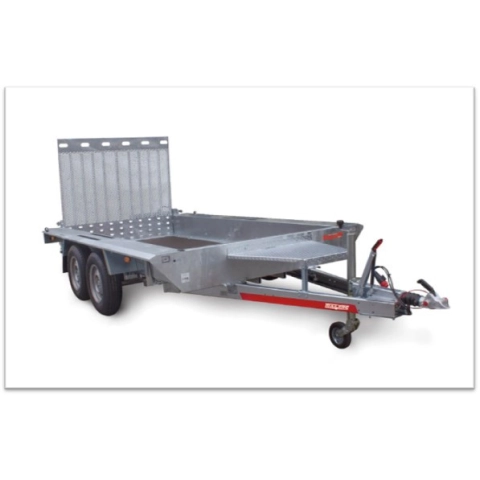

The TRA401 BOB2 Trailer is a robust and versatile means of transport designed to meet the needs of professionals and private individuals. Featuring a hot-dip galvanised frame and a V-shaped drawbar, it guarantees long service life and safe driving on any terrain.

Key Features:

Robustness and Durability: The hot-dip galvanised frame and high-quality components provide exceptional resistance to corrosion and weathering, ensuring an extended life cycle.

Manoeuvrability and Safety: The double axle with torsion bar suspension and independent wheels offers excellent manoeuvrability and stability, even under demanding load conditions. The mechanical inertia braking system with automatic reverse and parking brake ensure maximum safety during transport.

Operator comfort: Side rails with foot rests provide the operator with a safe and comfortable foothold during loading and unloading. The front plane on the drawbar allows a bucket to be safely placed, facilitating handling operations.

Easy Loading and Unloading: The full-width loading ramp and rear stabiliser feet make loading and unloading quick and safe.

Versatility: With its generous internal dimensions (3500x1600x300 mm) and payload capacity of 2790 kg, the TRA401 BOB2 is ideal for transporting a wide range of materials, from machinery to bulky goods.

Homologation: Homologated for the transport of goods, the TRA401 BOB2 complies with current road safety regulations.

Technical data:

Hot-dip galvanised chassis, V-shaped drawbar
Double axle with torsion bar suspension and independent wheels
Mechanical inertia brake, with automatic reverse
Parking brake
Wheels 185 R14 C
Phenolic Marine Plywood Floorboard
Side rails with footboard for operator.
Front plane on the drawbar for bucket support
Full-width loading ramp
Pair of rear stabiliser feet for parking and loading
Approval as transport of goods
Useful internal dimensions = 3500x1600x300 mm.
Overall dimensions = 5250x2270
Total Mass = 3490 Kg.
Tare Weight, approx. = 700 Kg.
Useful capacity, approx. = 2790 Kg.

Looking for a trailer with different features? Here you can find the whole range of trailers

Pictures and technical data not binding.
