- New
![satepa uv steriliser mono uvc80d3 display lcd satepa uv steriliser mono uvc80d3 display lcd](https://www.manelservice.com/51255-large_default/satepa-uv-steriliser-mono-uvc80d3-display-lcd.jpg)
Maximum flow rate: 2.8 m3/Hr - 2800 l/hr - 12.30 GPM @ 30,000 µWsec/cm2 2.4 m3/Hr - 2400 l/hr - 10.60 GPM @ 40,000 µWsec/cm2
Panel dimensions: 180 x 180 x 90 mm
Display: 2x8 characters white/blue backlit LCD display
Lamp control: Individual lamp management with end-of-life lamp alarm via LEDs/relays
Counting: Total lamp life hour counter
Resettable partial lamp life counting
Lamp change counting
Commands: Stand By command with "OK" button
Remote ON/OFF control
Lamp on mode with water flow
Solenoid valve closing mode in case of lamp off
Customisations: Customisable input signal
Alarms: Dry contact alarm relay 1 A @ 30Vdc; 0.250 A @ 230 Vac
Power alarm relay 1A @ 30Vdc; 0.250A @ 230 Vac
IP rating: IP 54 (IP 65 optional)
Electrical absorption: 40 Watts
Power supply: 230 Vac ± 10% @ 50/60 Hz
Product dimensions: 928 x 60.30 mm
SATEPA UV steriliser UVC80D3 - Display UV LCD
UV steriliser suitable for water debacterialisation by UV-C radiation with a wavelength of 254nm.
Equipped with 2 low-pressure mercury vapour lamps of 80W electrical power, enclosed in pure quartz sleeves, driven by
quartz sheaths, driven by high-efficiency electronic power supplies and an optional LCD display digital control unit with irradiation
irradiation and optional temperature sensor with tube arrangement.
Main features:
Flow rate:
Maximum: 12 m3/hr - 12000 l/hr - 52.8 GPM @ 30,000 µWsec/cm2
Reduced: 9 m3/hr - 9000 l/hr - 39.6 GPM @ 40,000 µWsec/cm2
Lamps:
2x80W
Service life: 9,000 hours
Ballast:
Dimensions: Total H: 928 mm - Ø 114 mm
Form factor: 'Z' tube
Working position: Vertical
Hydraulic connections:
1½" male threaded (flange optional)
½" water discharge
Maximum pressure: 10 Bar standard
Material: AISI 304 (AISI 316 optional)

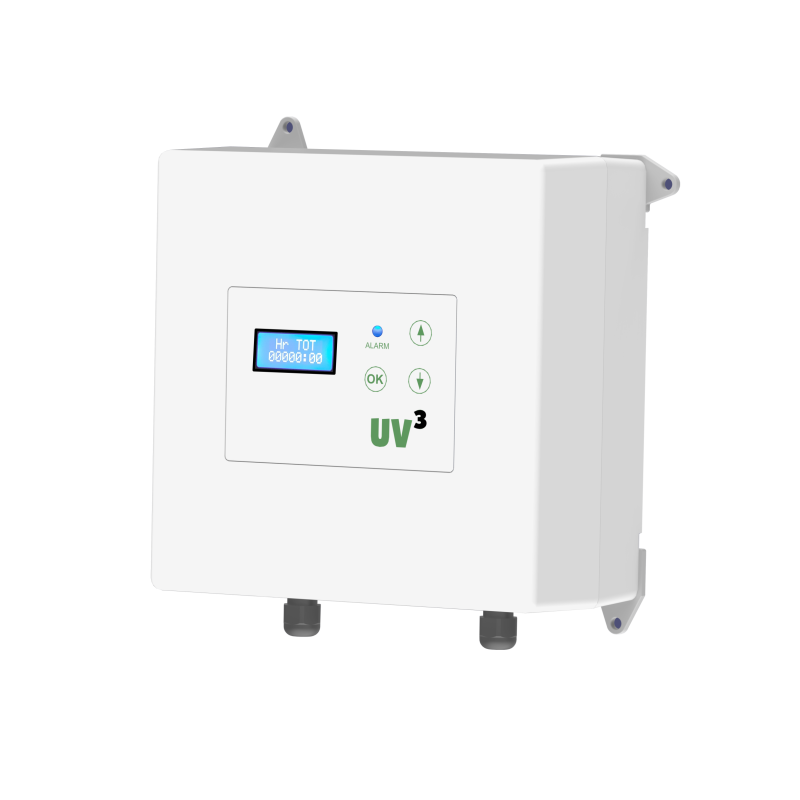

Control panel:
Dimensions: 180 x 180 x 90 mm
Display: white/blue backlit LCD 2x8 character
Lamp control:
Single lamp control
Lamp end-of-life alarm (LED/relay)
Counting:
Total lamp life hour counter
Partial lamp life counting (resettable)
Lamp change counting
Commands:
Stand By with "OK" button
Remote ON/OFF
Technical specifications:
Maximum flow rate: 2.8 m3/Hr - 2800 l/hr - 12.30 GPM @ 30,000 µWsec/cm2 2.4 m3/Hr - 2400 l/hr - 10.60 GPM @ 40,000 µWsec/cm2
Panel dimensions: 180 x 180 x 90 mm
Display: 2x8 characters white/blue backlit LCD display
Lamp control: Individual lamp management with end-of-life lamp alarm via LEDs/relays
Counting: Total lamp life hour counter
Resettable partial lamp life counting
Lamp change counting
Commands: Stand By command with "OK" button
Remote ON/OFF control
Lamp on mode with water flow
Solenoid valve closing mode in case of lamp off
Customisations: Customisable input signal
Alarms: Dry contact alarm relay 1 A @ 30Vdc; 0.250 A @ 230 Vac
Power alarm relay 1A @ 30Vdc; 0.250A @ 230 Vac
IP rating: IP 54 (IP 65 optional)
Electrical absorption: 40 Watts
Power supply: 230 Vac ± 10% @ 50/60 Hz
Product dimensions: 928 x 60.30 mm
Advantages:
High disinfection effectiveness: Eliminates pathogenic microorganisms
Safe and ecological: Does not use environmentally harmful chemicals
Low energy consumption: Reduces running costs
Low maintenance: Easy to install and use
Versatility: Suitable for a wide range of applications
Looking for a UV steriliser with different features? Click HERE.
Images and technical data purely indicative.
