- New
![SATEPA UV Steriliser MULTI UVC120D - Display LCD SATEPA UV Steriliser MULTI UVC120D - Display LCD](https://www.manelservice.com/51258-large_default/satepa-uv-steriliser-multi-uvc120d-display-lcd.jpg)
Maximum: 18 m3/h - 18000 l/m - 79.25 GPM @ 30,000 µWsec/cm2
Reduced: 14 m3/h - 14000 l/m - 61.64 GPM @ 40,000 µWsec/cm2
Number: 3
Power: 80W each
Service life: 9,000 hours
Dimensions: Total H: 928 mm - Ø 114 mm
Form factor: 'Z' tube
Working position: Vertical
Inlet: 2" male threaded (flange optional)
Water outlet: ½"
Maximum pressure: 10 Bar standard
Material: AISI 304 (AISI 316 optional)

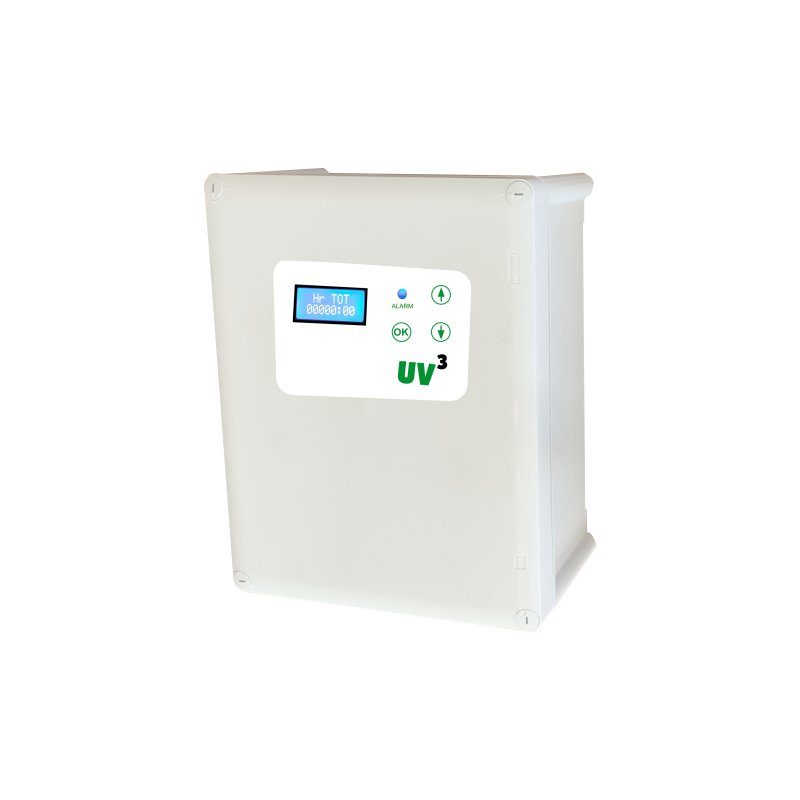

UV3 Cabinet Features
Cabinet dimensions: 300 x 380 x 120 mm
Display: white/blue backlit LCD 2x8 characters
End-of-life lamp alarm via LED/relay
Total lamp life hour counter
Partial lamp life hour counter (resettable)
Lamp change counting
Stand-by control with "OK" button
Remote ON/OFF control (e.g. flowmeter)
Solenoid valve control with power relay 230 Vac in exchange @ 0.250 A
Dry contact alarm relay 1 A @ 30Vdc; 0.250 A @ 230 Vac
IP rating: IP 54 (IP 65 optional)
Electrical absorption: 240 Watt
Power supply: 230 Vac ± 10% @ 50/60 Hz
SATEPA UV Multi Steriliser UVC120D - LCD Display
SATEPA's UV Multi UVC120D - LCD Display steriliser is the ideal solution for efficient and safe water debacterisation in a variety of applications. With its 3 low-pressure mercury vapour lamps and advanced technology, this device is able to eliminate bacteria, viruses and other microorganisms from water, ensuring deep and complete disinfection.
Key features:
Proven effectiveness: Uses the power of UV-C rays with a wavelength of 254 nm to eliminate up to 99.9% of bacteria, viruses and other microorganisms from water.
3 low-pressure mercury vapour lamps: They offer high sterilisation power and a long life of up to 9,000 hours.
Sheaths of pure quartz: They protect the lamps and ensure optimal UV-C transmission for uniform debacterisation.
High-efficiency electronic ballasts: Reduce energy consumption and ensure reliable operation.
Digital control unit with LCD display: Allows you to monitor the operating status of the steriliser, display irradiance and temperature data and set operating parameters.
Optional irradiance and temperature sensor: Provides precise control of UV-C intensity and water temperature for optimal debacterisation.
Advantages:
Pure and safe water: Eliminates harmful microorganisms from the water, ensuring safe drinking water and optimal hygiene.
Health protection: Prevents the spread of diseases linked to contaminated water.
Reduction of chlorine use: Reduces or eliminates the use of chlorine and other chemicals for water disinfection, promoting a healthier and more sustainable environment.
Energy efficiency: Highly efficient electronic ballasts ensure low energy consumption.
Simple maintenance: The lamps are easily replaceable and the monitoring system facilitates the management of the UV steriliser.
technical features:
Maximum: 18 m3/h - 18000 l/m - 79.25 GPM @ 30,000 µWsec/cm2
Reduced: 14 m3/h - 14000 l/m - 61.64 GPM @ 40,000 µWsec/cm2
Number: 3
Power: 80W each
Service life: 9,000 hours
Dimensions: Total H: 928 mm - Ø 114 mm
Form factor: 'Z' tube
Working position: Vertical
Inlet: 2" male threaded (flange optional)
Water outlet: ½"
Maximum pressure: 10 Bar standard
Material: AISI 304 (AISI 316 optional)
UV3 Cabinet Features
Cabinet dimensions: 300 x 380 x 120 mm
Display: white/blue backlit LCD 2x8 characters
End-of-life lamp alarm via LED/relay
Total lamp life hour counter
Partial lamp life hour counter (resettable)
Lamp change counting
Stand-by control with "OK" button
Remote ON/OFF control (e.g. flowmeter)
Solenoid valve control with power relay 230 Vac in exchange @ 0.250 A
Dry contact alarm relay 1 A @ 30Vdc; 0.250 A @ 230 Vac
IP rating: IP 54 (IP 65 optional)
Electrical absorption: 240 Watt
Power supply: 230 Vac ± 10% @ 50/60 Hz
Looking for a UV steriliser with different features? Click HERE.
Images and technical data purely indicative.
