IDROMAR MC15S DUPLEX WATERMAKER 1250Lt/h
Hourly production at 25°C: 1250Lt/h
Daily production at 25°C: 30000 Lt/day
Salinity water produced: 300/400 PPM
Power consumption: 12 KW
Length: 1100 mm
Width: 550 mm
Height: 900 mm
Weight: 370 Kg
Hydraulic connections
Sea suction: 2'' x 1"
Case suction: 2" x 1".
Discharge: 2'' x 1"
Production: 2'' x 1/2"
- Power (W)
- 12000
- Length (mm)
- 1100
- Width (mm)
- 550
- Height (mm)
- 900
- Feed Type
- 230 V
- Production for hour at 25°C (Lt/h)
- 1250
- Daily production at 25°C (Lt/day)
- 30000
- Salinity of water produced (PPM)
- 300/400
- Capacity (Lt/h)
- 1250
- Remote panel
- Digital
- Weight (Kg)
- 370
IDROMAR MC15S DUPLEX WATERMAKER 1250Lt/h
The Watermaker IDROMAR MC15S DUPLEX is composed of two reverse osmosis plants in a single frame with the possibility of simultaneous or independent operation with capacity 1250Lt/h
IDROMAR MC15S DUPLEX is an osmosis plant recommended when the demand for drinking water by the user is not satisfied by a single plant.
The Watermaker IDROMAR is a reverse osmosis plant with a capacity of 1250Lt/h very compact and effective, thanks to its modular composition is easy to install and operate.
The Watermaker IDROMAR with a capacity of 1250Lt/h is incredibly accessible to facilitate the operations of ordinary or extraordinary maintenance and therefore all the works majr can be performed from the front panel.
It is also possible to design the unit with all components incorporated such as the prefeeding pump, sand filters and regeneration tank. The MC15S Duplex Watermaker clearly takes up more space but simplifies installation, and the entire unit is compact and aesthetically pleasing.
Osmotic units can work in serpar or simultaneous mode. The data below is for 2 units working simultaneously. The osmosis system has numerous accessories that can be combined to improve its reliability, efficiency and facilitate its operation and accessibility.
The osmosis system has numerous accessories that can be combined to improve its reliability, efficiency and accessibility.

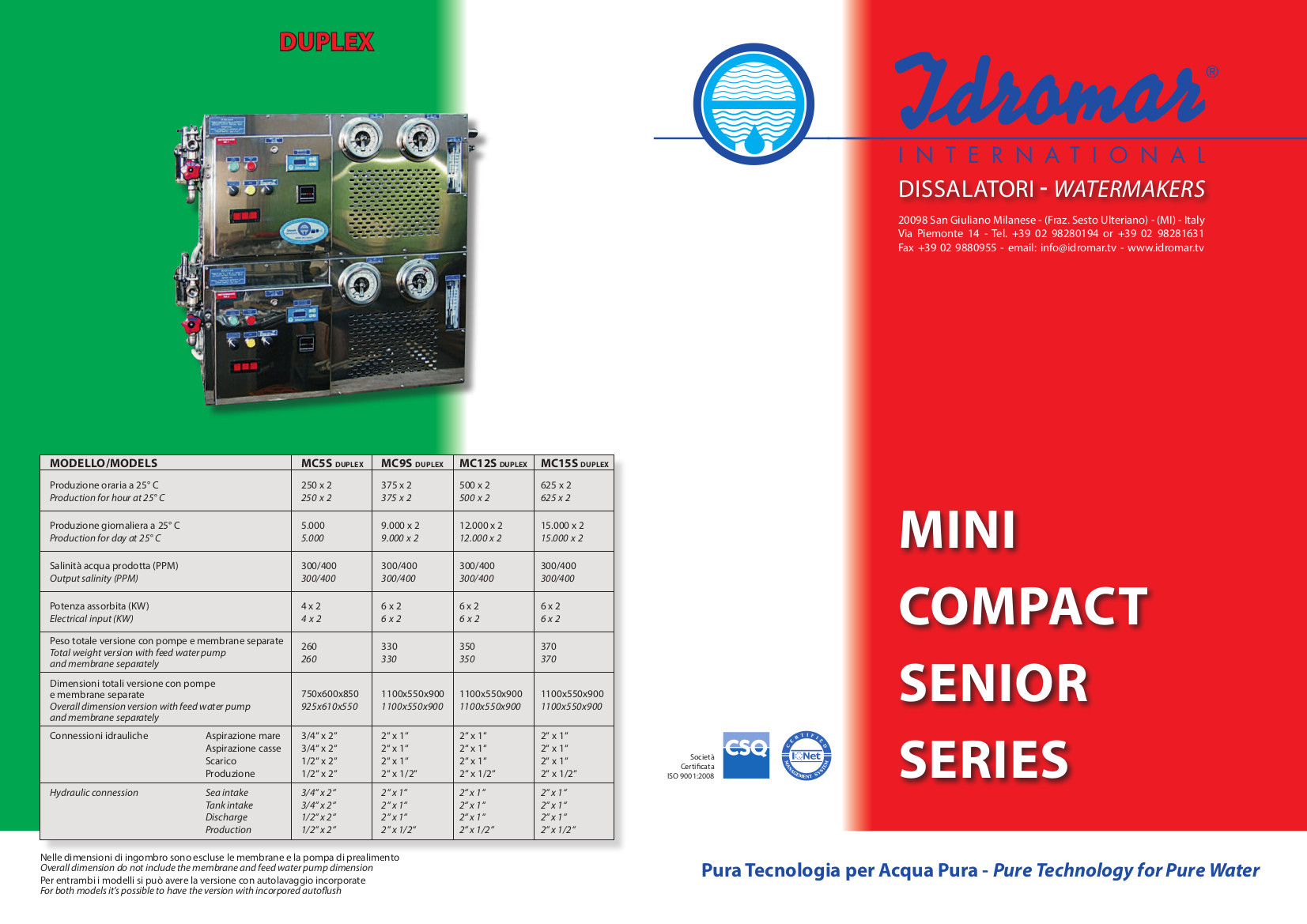

TECHNICAL CHARACTERISTICS WATERMAKER IDROMAR MC15S DUPLEX 1250Lt/h
Hourly production at 25°C: 1250Lt/h
Daily production at 25°C: 30000 Lt/day
Produced water salinity: 300/400 PPM
Power consumption: 12 KW
Length: 1100 mm
Width: 550 mm
Height: 900 mm
Weight: 370 Kg
Hydraulic connections
Sea suction: 2'' x 1"
Chests suction: 2'' x 1"
Exhaust: 2'' x 1"
Production: 2'' x 1/2"
If you are looking for another watermaker similar to the Idromar then we suggest you browse our entire catalog dedicated to nautical watermakers.
Images and technical data are not binding.
Quisque vitae lorem luctus, sagittis lacus eget, semper ante. Morbi id magna blandit, porttitor diam tincidunt, finibus orci. Sed aliquet aliquet nisl, sit amet tristique risus fermentum eu. Praesent vel ex sodales felis consectetur mattis sed sit amet lectus. Cras nec rhoncus urna, at efficitur tellus. Vivamus sed purus eros. Vivamus bibendum lacus at gravida sollicitudin. Duis tincidunt vitae turpis at viverra. Nam pharetra aliquam elementum. Sed auctor sagittis nisl et lobortis. Nam non eros malesuada, fringilla sem ac, aliquet est.
Remote Panel Automatic Duplex Version
Supplement automatic version Single Version
Supplement automatic version Duplex Version
Semi-automatic panel start-stop-reset and alarming Single Desalinator
Semi-automatic panel start-stop-reset and alarming Duplex Desalinator
Monitoring box for PLC connection Single Desalinator
Monitoring box for PLC connection Duplex Desalinator
Sand filter 10X35X2750
Sand filter 16X49
Sand filter 16X49
Stainless steel filter active carbon GEM3
Stainless steel filter active carbon GEM 7/10
Sterilizer UV STERILIZER 2500 LT/H
Sterilizer UV STERILIZER 5000 LT/H
Sterilizer UV STERILIZER 8000 LT/H
Sterilizer UV STERILIZER 10000 LT/H
Sterilizer UV STERILIZER 13000 LT/H
Sterilizer UV STERILIZER 18000 LT/H
Dosing unit silver ion
SIL 168 SILVER ELECTRODE SYSTEM
Water softner IDROFAST 9100
Limestone filter F60
Limestone filter 10X23
Limestone filter 10X35
