HELVI SPOT CAR ALU 66 + FAST GUN

  • New
SPOT CAR ALU 66
search
  • SPOT CAR ALU 66
  • FAST GUN
HELVI
99500040
New product

Power supply (1ph): 230V ± 10% - 50/60Hz
Fuse: T6,3 A
V₀: V < 20 V
C: 66000 µF
E: 1500 Joule max
Ts: 1.5 ms
Aluminium rivets Ø: 3 - 8 mm
Length: 250 mm
Width: 370 mm
Height: 280 mm
Box dimensions (WxWxH): 290x560x400 mm
Gross/net weight: kg 18 / 16.9 kg

Technical features
Frequency (Hz)
50 / 60
Voltage (V)
230
Capacity (µF)
66000 µF
Length (mm)
250
Width (mm)
370
Height (mm)
280
Product type
Welding machine
Weight (Kg)
18
Fuse
T6,3 A
V₀
More than 20V
E (Joule max)
1500 Joule max
Ts
1,5 ms
Aluminium rivets Ø
3 - 8 mm
Details

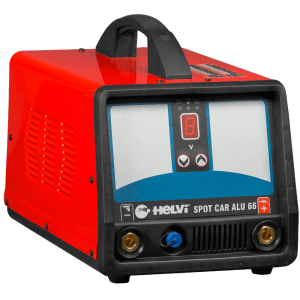

Spot Car Alu 66 Welding Machine

The Spot Car Alu 66 welder is a capacitive discharge welder designed for welding aluminium studs from M3 up to M8. The Spot Car Alu 66 welder is particularly suitable for quick repairs on aluminium bodies. The Spot Car Alu 66 welder is powered by a voltage of 230 V ± 10% and a frequency of 50/60 Hz. The output voltage is below 20 V, which makes it safe for use on aluminium. The capacity of the Spot Car Alu 66 welder is 66,000 µF, which allows it to store a large amount of energy to generate a high-power pulse. The maximum energy of the Spot Car Alu 66 welder is 1,500 joules, which is sufficient for welding large aluminium studs. The rise time of the output voltage is 1.5 milliseconds, which enables fast and precise welding. The Spot Car Alu 66 welder is equipped with an advanced safety system that allows the capacitor to discharge only when in contact with the workpiece. This system reduces the risk of injury to operators. The Spot Car Alu 66 welder is compact and easy to transport. Its dimensions are 250 x 370 x 280 mm and its weight is 18 kg.

Main features of the Spot Car Alu 66 welding machine:

Capacitive discharge welder for aluminium studs M3 to M8
Power supply 230 V ± 10%, 50/60 Hz
Output voltage < 20 V
Capacity 66,000 µF
Maximum energy 1,500 Joule
Rise time 1.5 ms
Advanced safety system
Compact dimensions (250 x 370 x 280 mm)
Lightweight (18 kg)


If, on the other hand, you are looking for another product similar to the HELVI welding machine then we recommend that you view the entire range dedicated to welding machines .

Images and technical data not binding.
