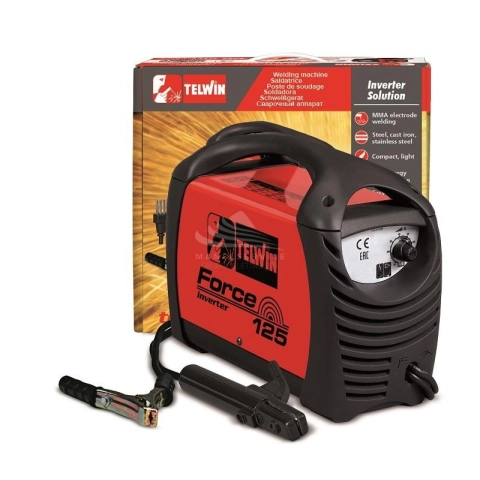

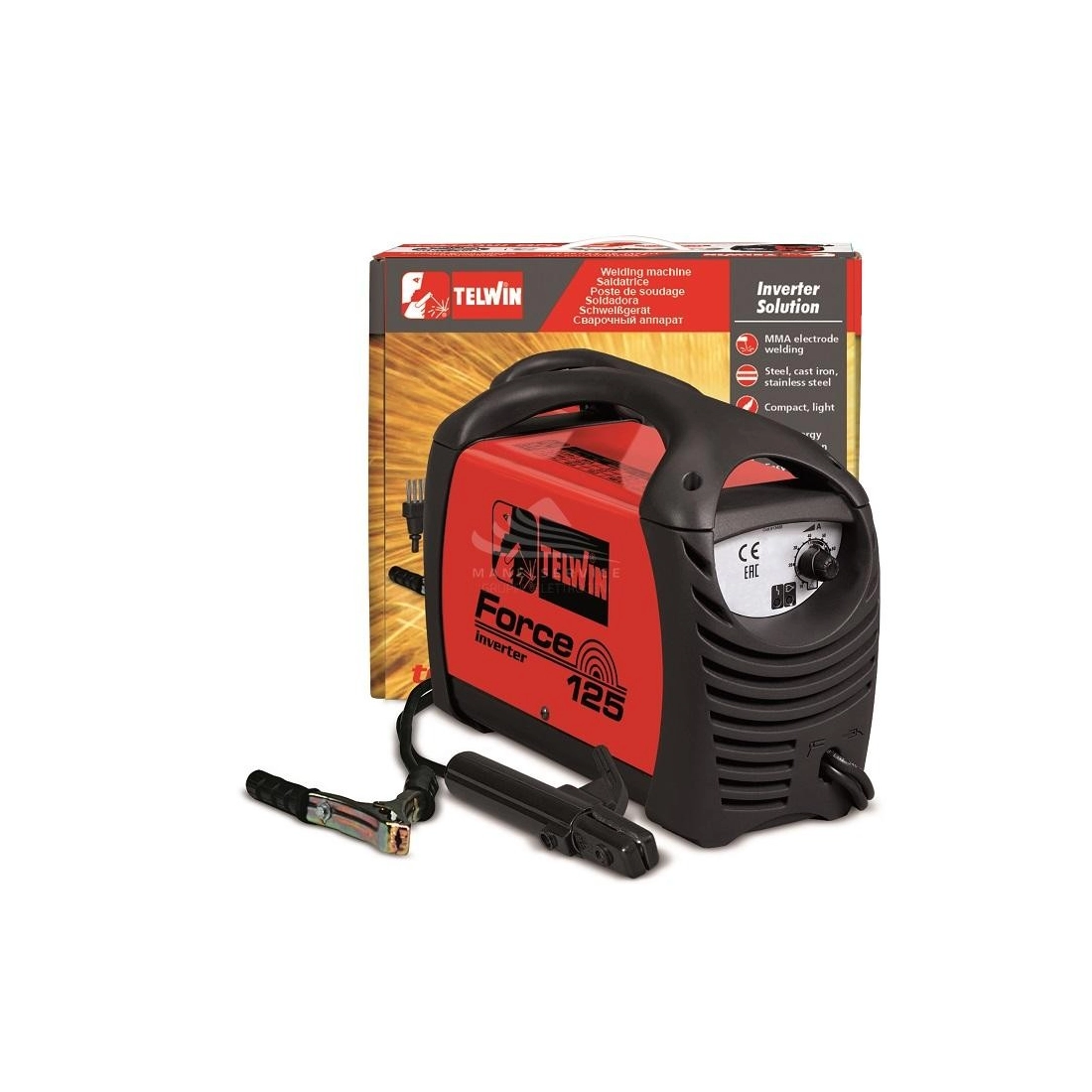

TELWIN FORCE 125 230V ACD CARDBOARD CARRY CASE
815872
New product
Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding current: DC
Type of welding: MMA
No-load voltage: 72 V
Regulation current: 10 - 80 A
Current max: 80 A
Diameter electrodes: 1.6 - 2.5 mm
Length: 370 mm
Width: 145 mm
Height: 320 mm
Weight: 3.08 Kg
Technical features
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- Efficiency (%)
- 70
- Protection degree
- IP21
- Maximum permissible current (A)
- 15
- No-load voltage (V)
- 72
- Regulation current (A)
- 10 - 80
- Diameter electrodes (mm)
- 1.6 - 2.5
- Type of welding current
- DC
- Type of welding
- MMA
- Current max (A)
- 80
- Length (mm)
- 370
- Width (mm)
- 145
- Height (mm)
- 320
- Voltage regulator
- Inverter
- Weight (Kg)
- 3.08
Details
MMA inverter, electrode welding machine in direct current (DC).
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Arc force, hot start and anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and cardboard carry case.
Not binding images and technical data.
