TELWIN MASTERMIG 500 230-400V AQUA

TELWIN MASTERMIG 500 230-400V AQUA
search
  • TELWIN MASTERMIG 500 230-400V AQUA
TELWIN
822008
Out Of Production

Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: MIG-MAG/FLUX/BRAZING
No-load voltage: 55 V
Regulation current: 50 - 500 A
Current max: 500 A
Steel welding wire diameter: 0.6 - 2 mm
Inox welding wire diameter: 0.8 - 2 mm
Aluminium welding wire diameter: 0.8 - 1.2 mm
Flux cored welding wire diameter: 1 - 2 mm
Brazing wire diameter: 0.8 - 1.2 mm
Length: 945 mm
Width: 865 mm
Height: 830 mm
Weight: 136 Kg

Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Protection degree
IP22
No-load voltage (V)
55
Adjustment positions
24
Regulation current (A)
50 - 500
Ø steel welding wire (mm)
0.6 - 2
Ø inox welding wire (mm)
0.8 - 2
Ø aluminium welding wire (mm)
0.8 - 1.2
Ø flux cored welding wire (mm)
1 - 2
Ø brazing wire (mm)
0.8 - 1.2
Type of welding
MIG-MAG
MIG-MAG welding
MIG-MAG/FLUX/BRAZING
Current max (A)
500
Length (mm)
945
Width (mm)
865
Height (mm)
830
Weight (Kg)
136
Details

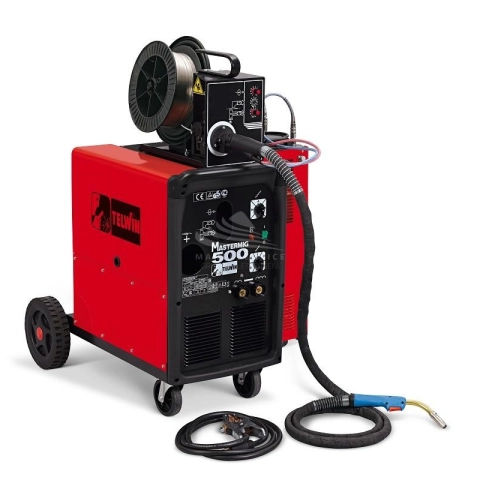

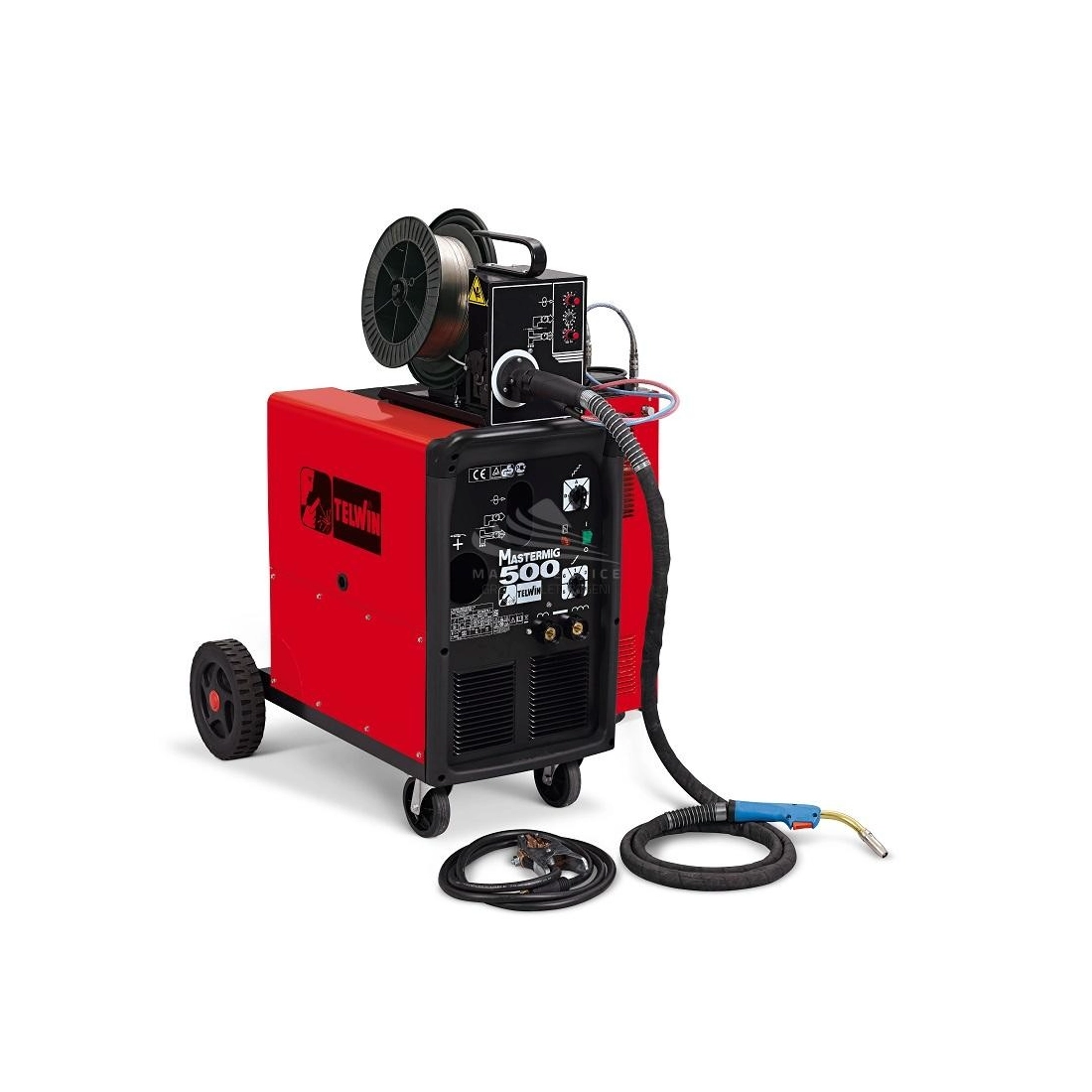

MIG-MAG/FLUX/BRAZING welding machine with removable wire feeder, fit for use in the industrial field.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Features:
- Very strong
- Numerous steps for regulation of arc voltage
- Regulation of spot welding time
- Two positions for reactance
- Thermostatic protection
Thanks to the extensions (optional) it is possible to increase the working range between wire feeder and power source up to 10 meters.
Complete with water cooling unit and MIG-MAG welding accessories.

Not binding images and technical data.
