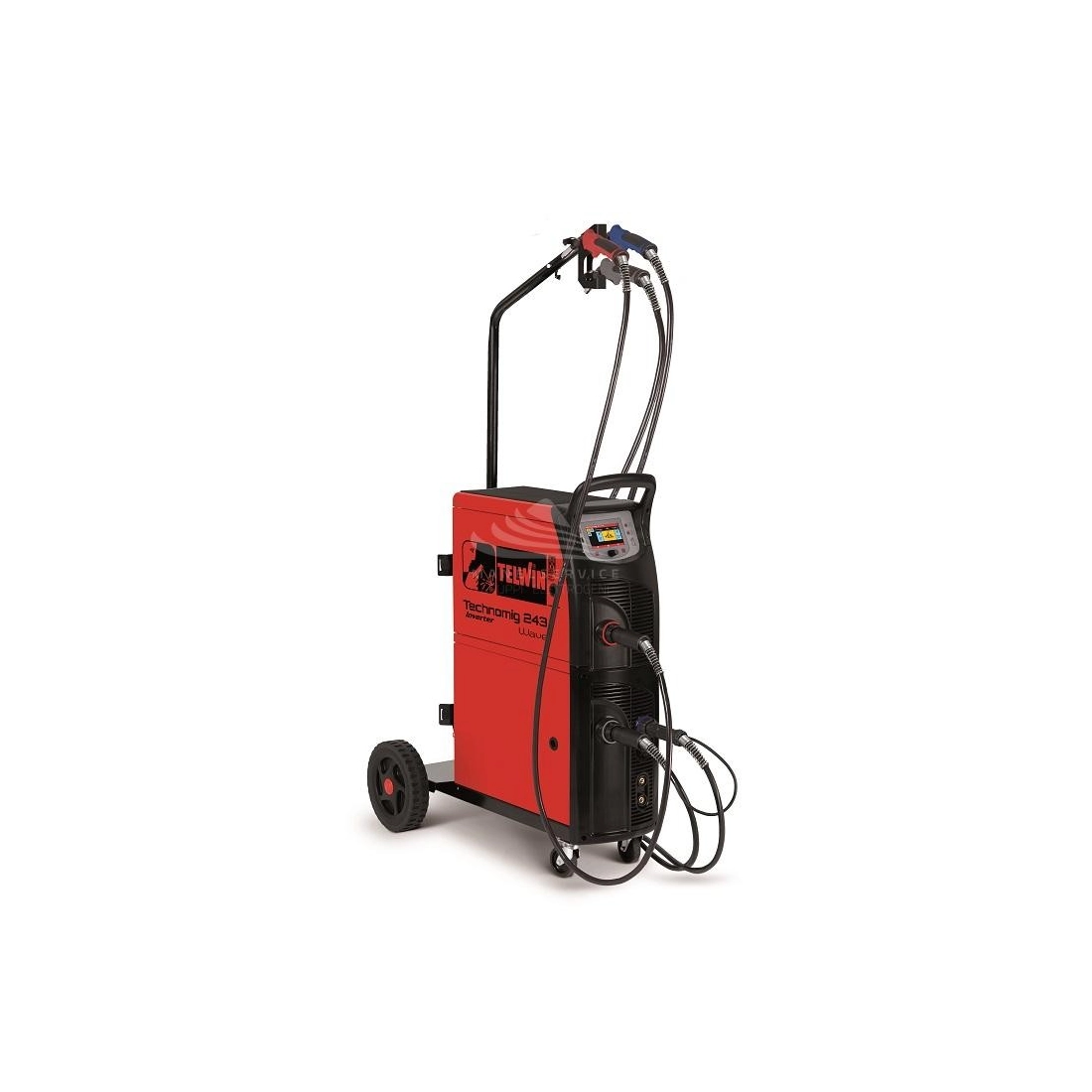

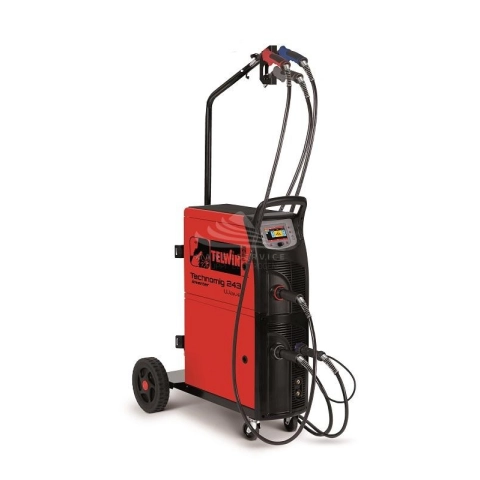

TELWIN TECHNOMIG 243 WAVE 230V

TELWIN TECHNOMIG 243 WAVE 230V
search
  • TELWIN TECHNOMIG 243 WAVE 230V
TELWIN
816066
New product

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding: MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift
No-load voltage: 96 V
Regulation current: 20 - 220 A
Current max: 180 A
Diameter electrodes: 1.6 - 4 mm
Steel welding wire diameter: 0.6 - 1 mm
Inox welding wire diameter: 0.8 - 1 mm
Aluminium welding wire diameter: 0.8 - 1.2 mm
Flux cored welding wire diameter: 0.8 - 1.2 mm
Brazing wire diameter: 0.8 - 1 mm
Length: 870 mm
Width: 530 mm
Height: 1665 mm
Weight: 59 Kg

Technical features
Phase
Single phase
Frequency (Hz)
50 / 60
Voltage (V)
230
Efficiency (%)
84
Protection degree
IP23
No-load voltage (V)
96
Regulation current (A)
20 - 220
Diameter electrodes (mm)
1.6 - 4
Ø steel welding wire (mm)
0.6 - 1
Ø inox welding wire (mm)
0.8 - 1
Ø aluminium welding wire (mm)
0.8 - 1
Ø flux cored welding wire (mm)
0.8 - 1.2
Ø brazing wire (mm)
0.8 - 1
Type of welding
Multiprocess
MIG-MAG welding
MIG-MAG/FLUX/BRAZING
Current max (A)
180
Length (mm)
870
Width (mm)
530
Height (mm)
1665
Voltage regulator
Inverter
Weight (Kg)
59
Details

Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine.
It is particularly suitable for use in body shops and allows the immediate use of three different torches. This feature enables the user to work directly on different materials without any need to change either the torch or the wire spool (3 coil storage: 1/ 5 Kg max and 2/15 Kg max).
Each torch can be dedicated to welding specific materials such as steel, high resistance steel (HSS), stainless steel, aluminium and brazing of galvanised metal sheets (AB Pulse).
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters and the presence of specific programs for the materials to weld (pulsed for aluminium, with low thermal transfer for thin surfaces).
Features:
- 25 customisable programs
- continuous and pulsed functioning
- 3 torches always ready for use
- user-friendly interface with TFT colour screen
- WAVE OS operating system with pulsed welding programs for specific materials (AB Pulse for aluminium and galvanised sheet metal) and low thermal transfer for thin materials (ATC).
Complete with 2 MT15 torches, 1 MT25 torch, cable and earth clamp.

Not binding images and technical data.
