Phase Type: Single-phase / Three-phase
Single-phase Continuous Power: 5.8 KVA / 4.6 KW
Single-phase Maximum Power: 6.4 KVA / 5.1 KW
Three-phase Continuous Power: 17.5 KVA / 14 KW
Three-phase Maximum Power: 19.2 KVA / 15.3 KW
Power Factor cos fiφ: 0. 8
VAC voltage: 230 / 400 V
Frequency (Hz): 50
Voltage regulator: AVR
Start framework: Manual / Automatic
Engine: BRIGGS & STRATTON 31HP
RPM: 3000
Power supply: Gasoline
Emissions standard: STAGE V
Fuel tank capacity: 60 l
Fuel consumption @ 75 % load: 6.5 l/h
Autonomy @ 75 % load: 9.2 h
Sound pressure: 72 dB(A) @ 7m
Length: 1200 mm
Width: 730 mm
Height: 930 mm
Net weight: 280 Kg

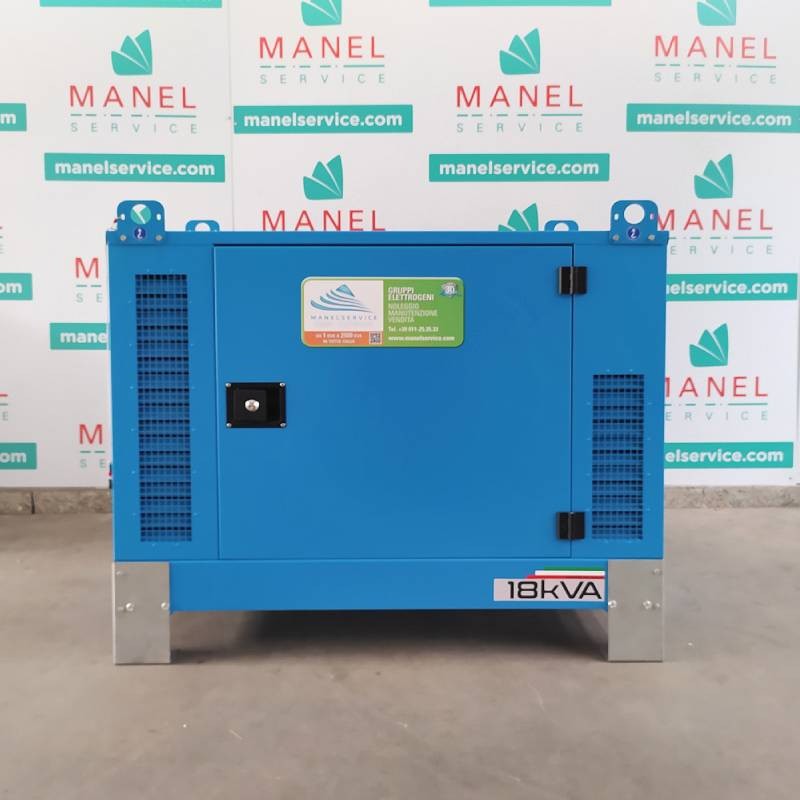

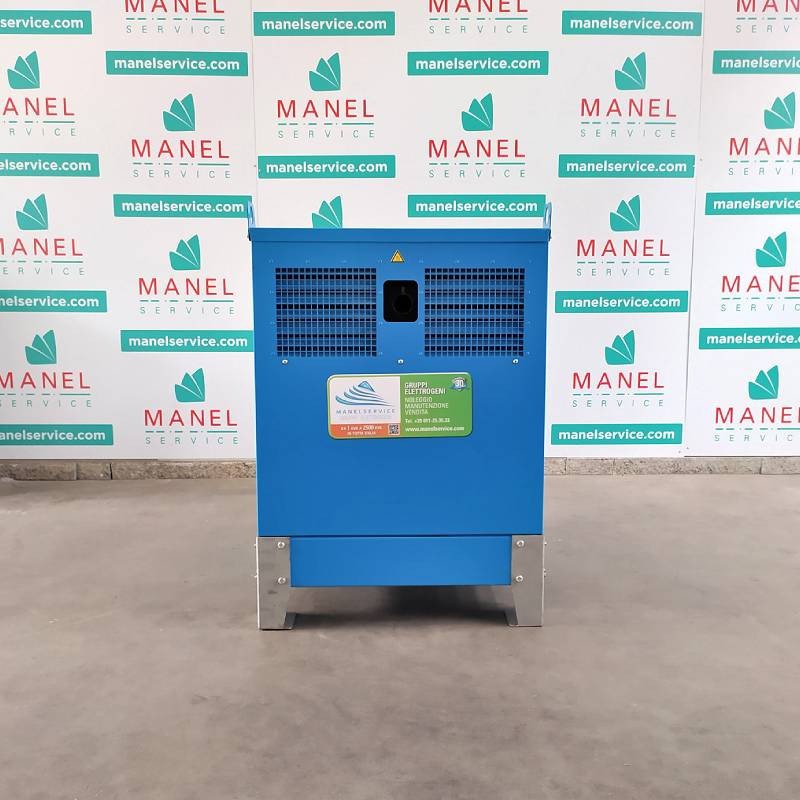

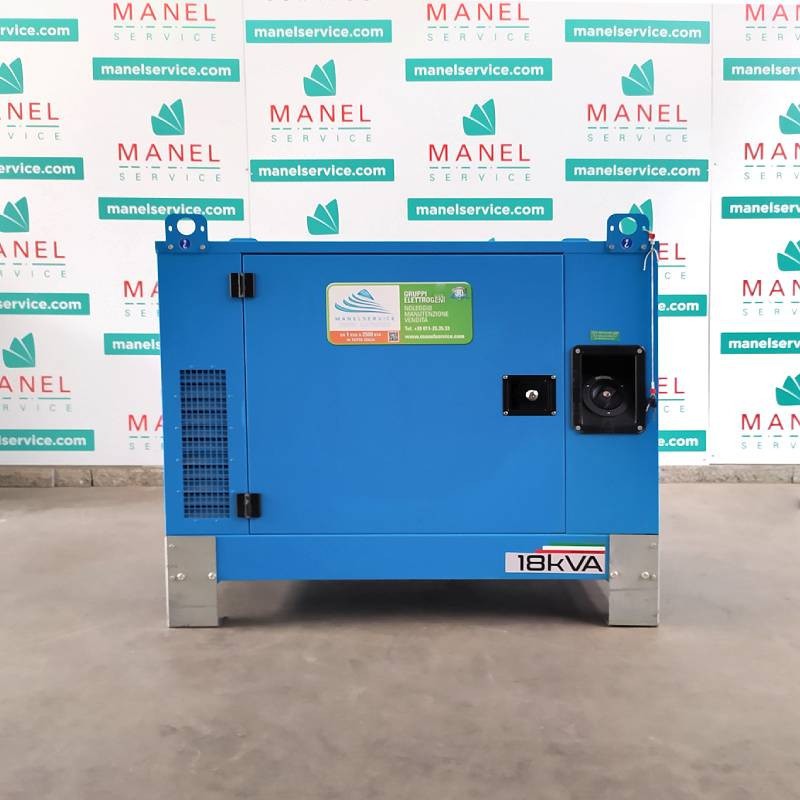

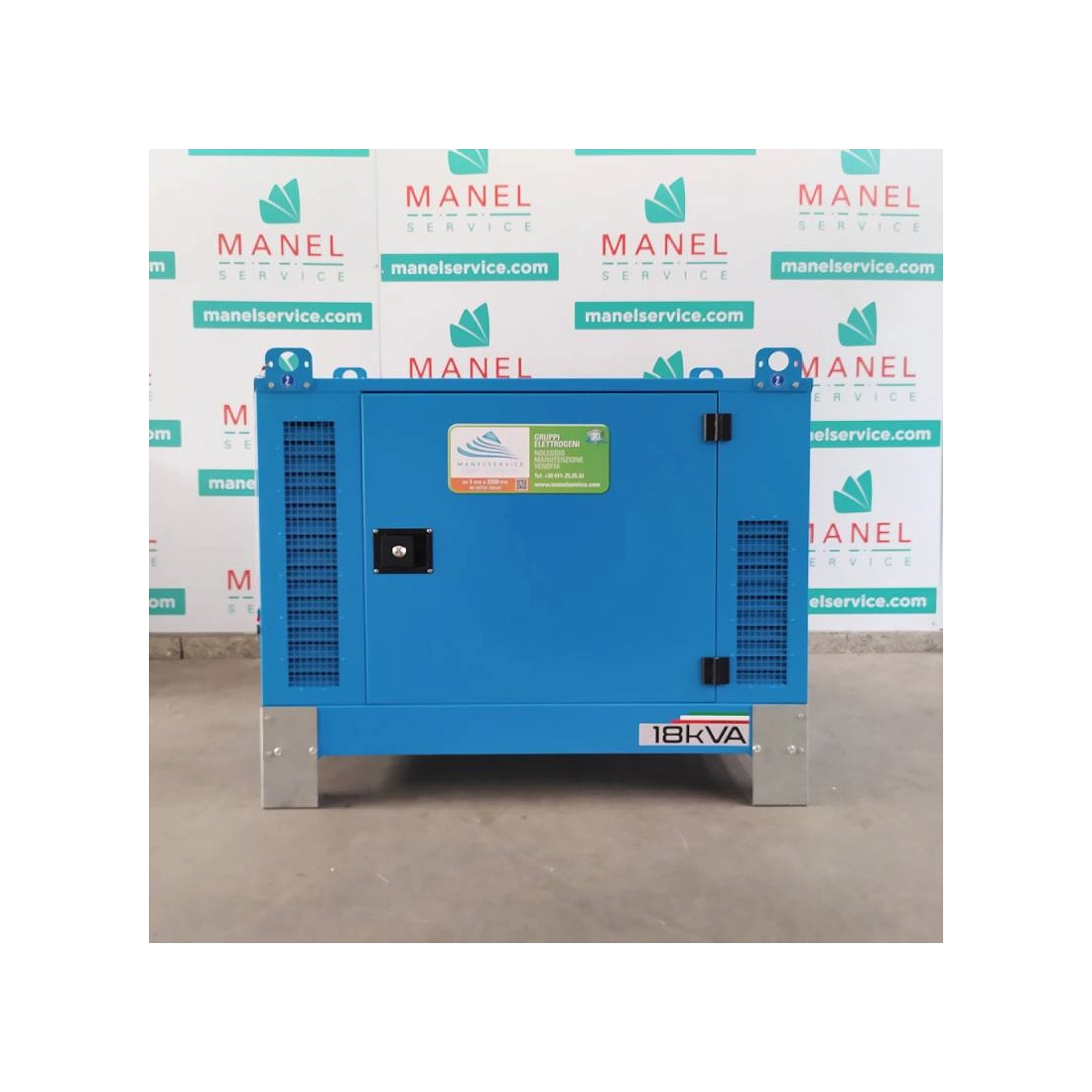

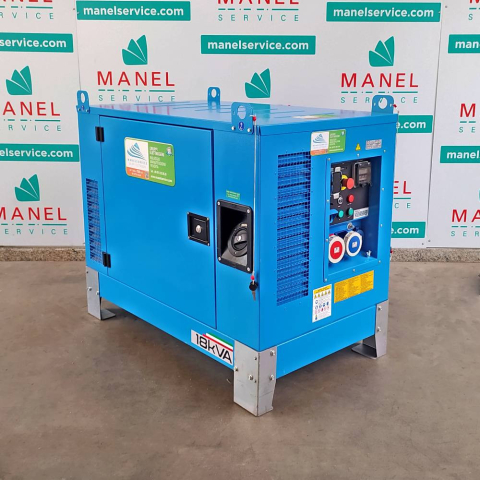

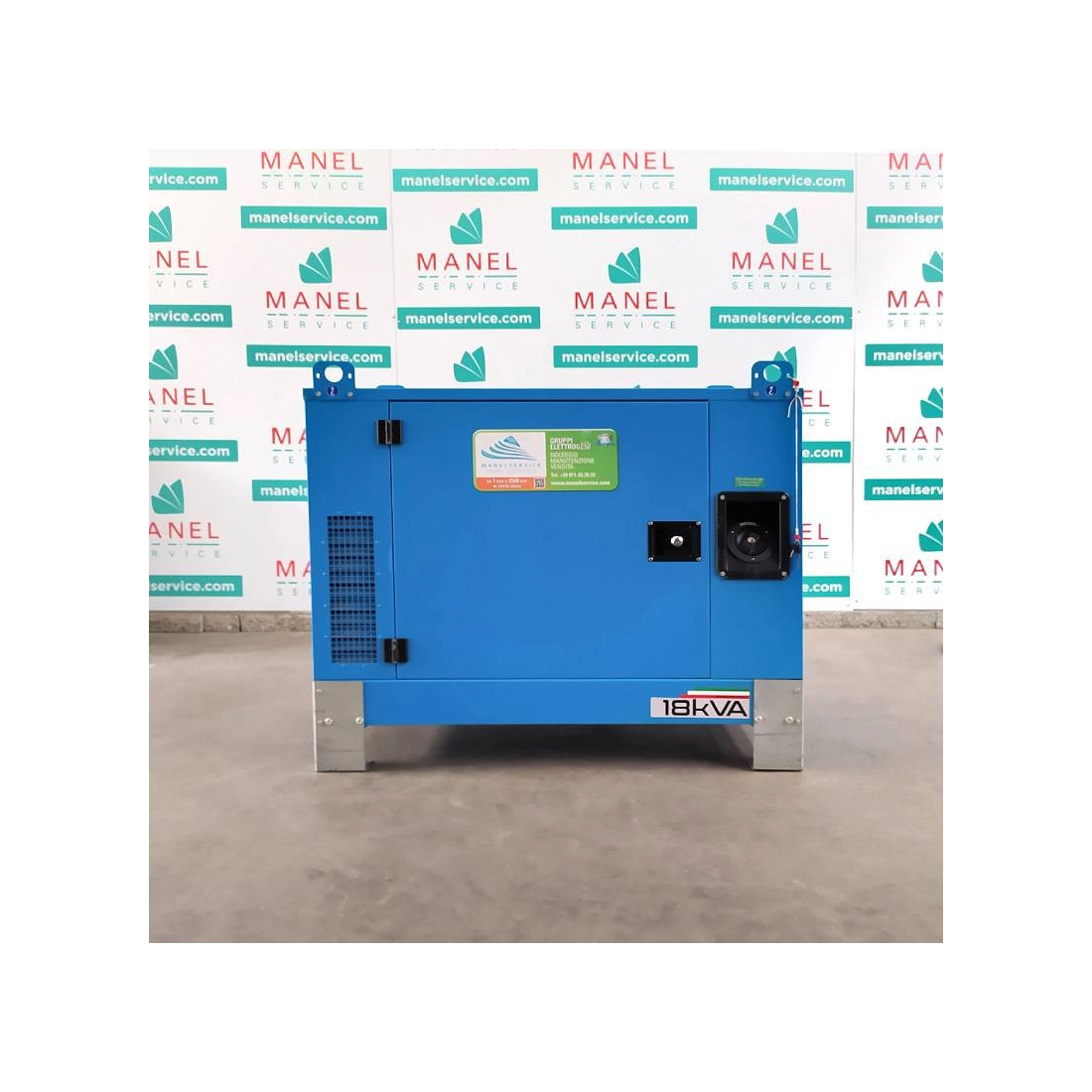

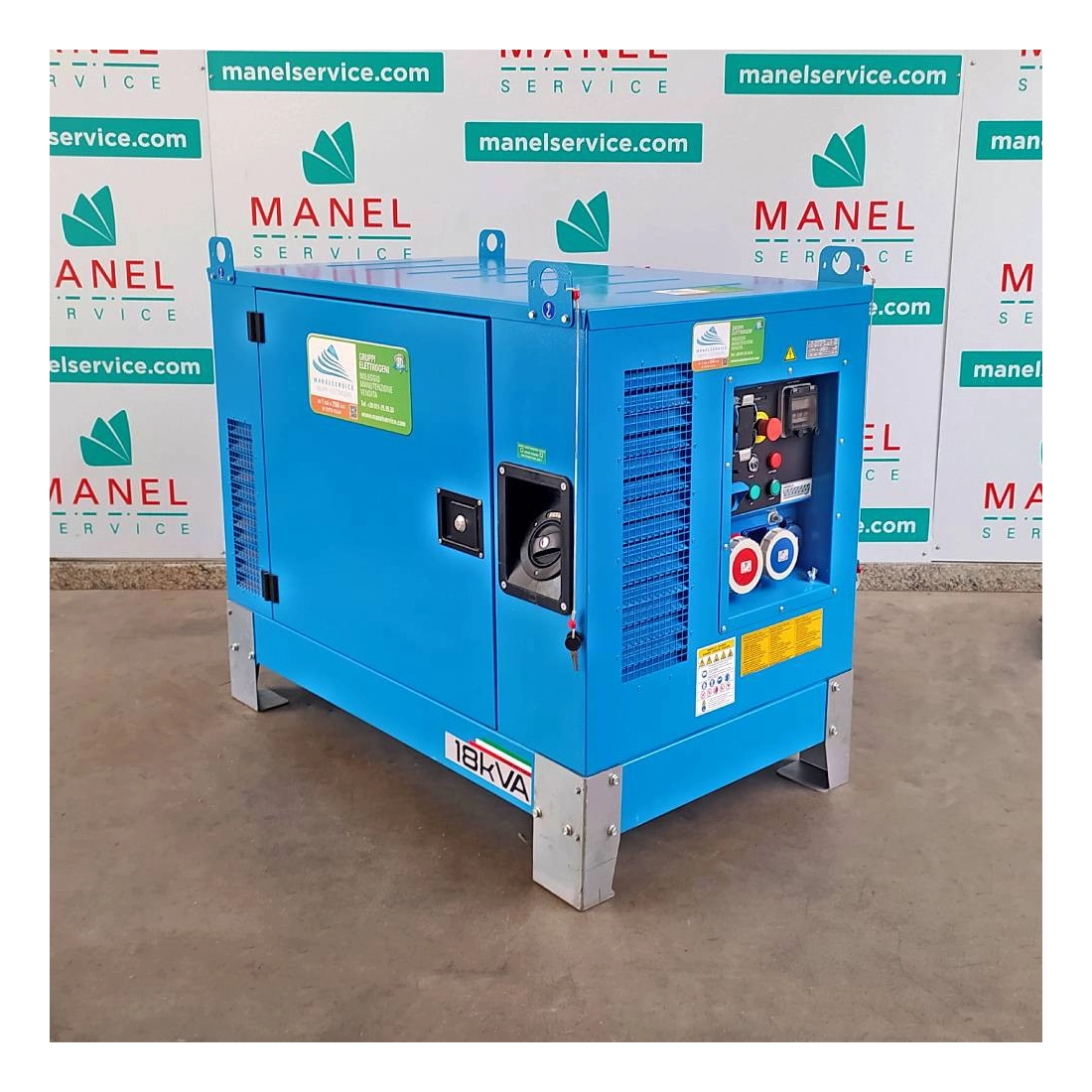

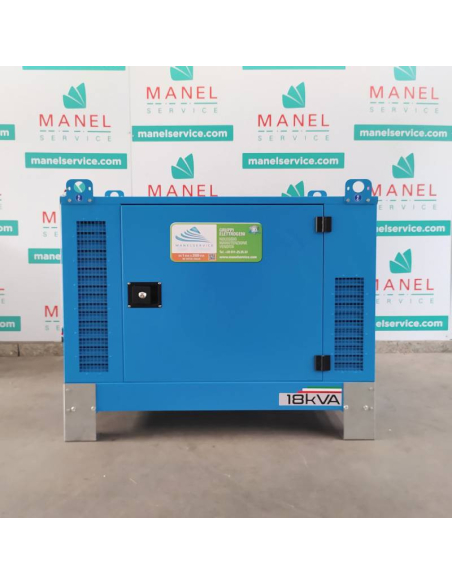

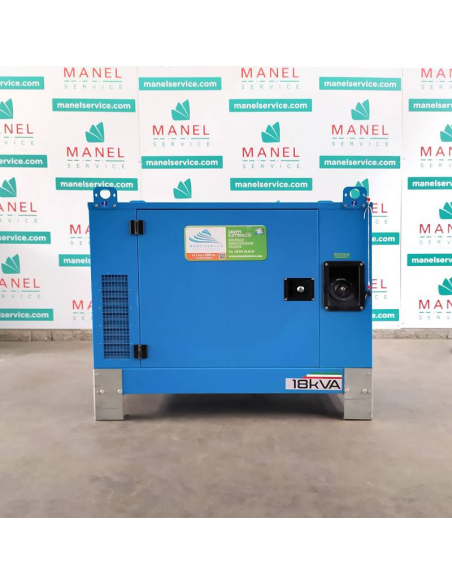

Generator single-phase / three-phase of 19,2 KVA with BRIGGS & STRATTON engine powered by STAGEV Gasoline at 3000 rpm, compact and easy to use.

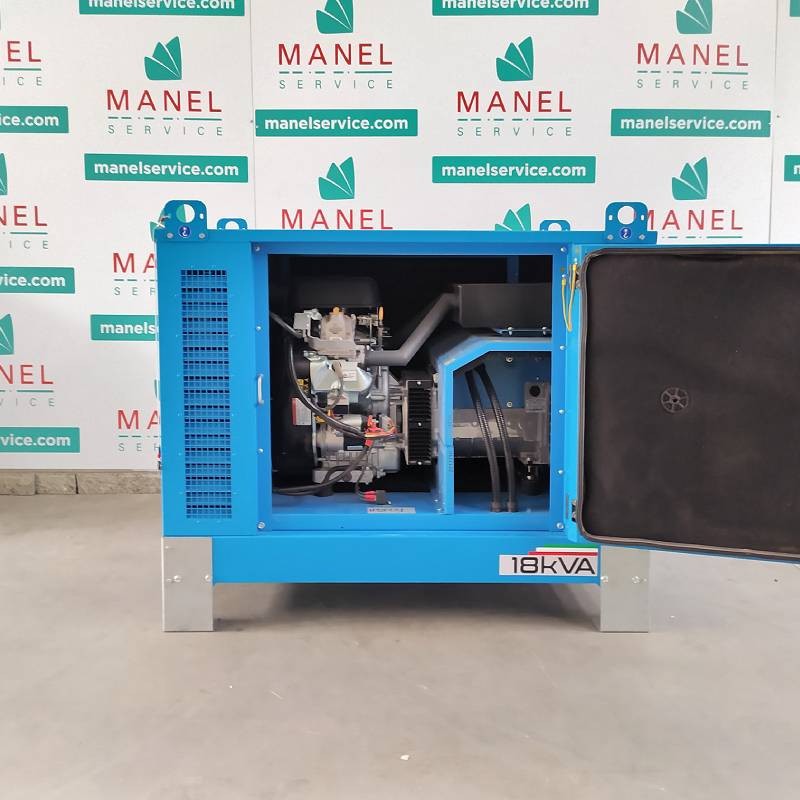

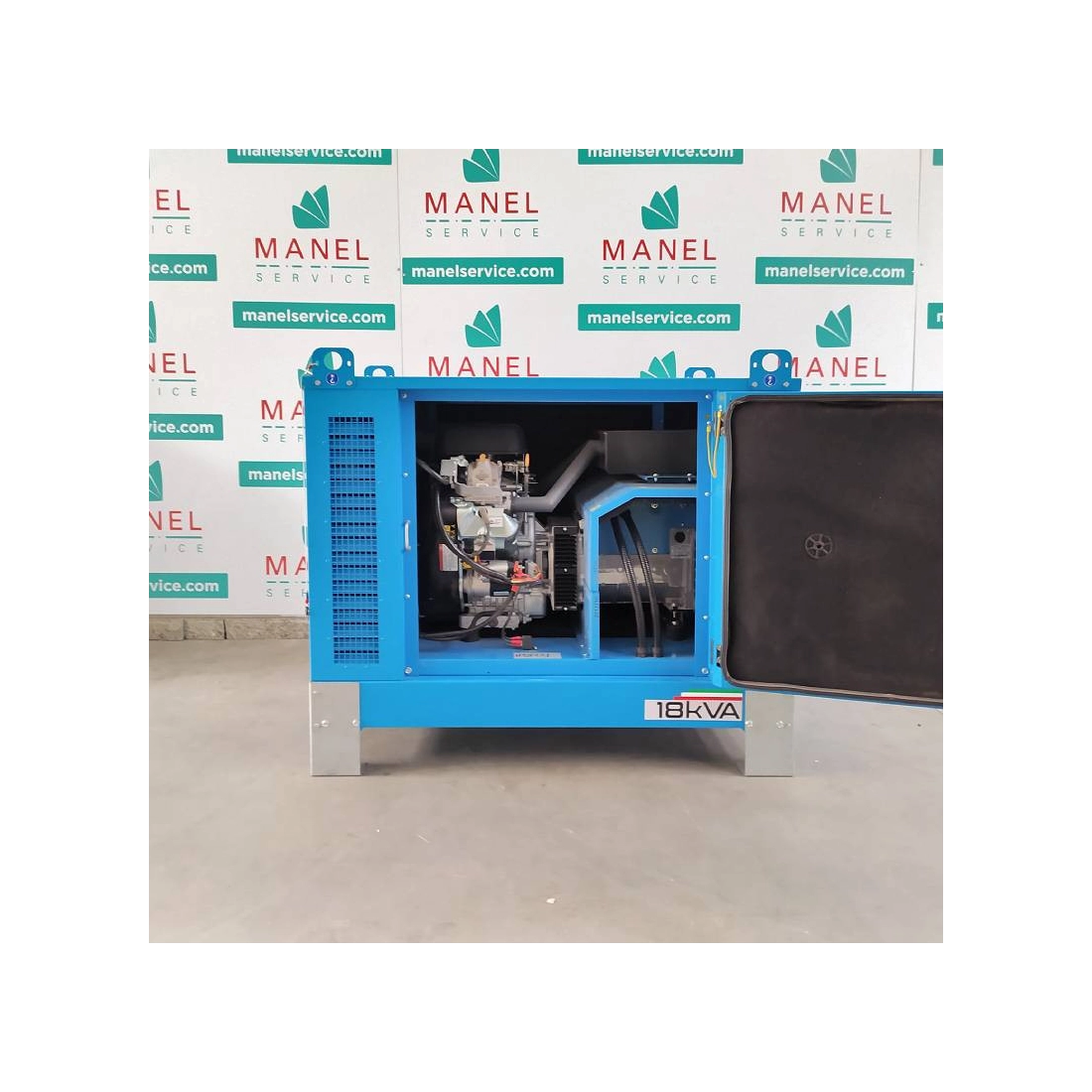

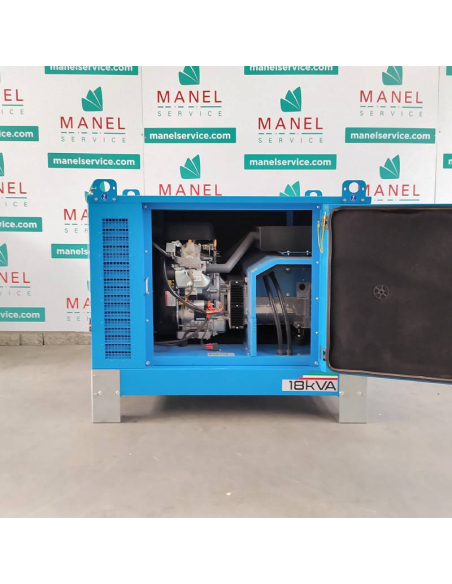

The generator consists of an NSM Made in Italy, self-excited brushless alternator with AVR voltage regulator. The generator is equipped with electric start with battery that allows a practical and fast use even when cold. The generator has a low fuel consumption, in fact it consumes only 6,5 liters/hour at 75% of the load.
The generator is not supplied with feet as these are supplied separately.
The generator is part of the QUIET series because thanks to the hood has low noise emissions and is supersilenced. This generator is 3000 RPM, with BRIGGS & STRATTON engine with electric start with key and battery.
The generator is equipped with a "mobile" STAGEV motorization, as required by the European Regulation 2016/1628. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction in the environmental impact of 200% compared to standard engines.
TECHNICAL FEATURES
Phase Type: Single-phase / Three-phase
Singlephase Continuous Power: 5.8 KVA / 4.6 KW
Singlephase Maximum Power: 6.4 KVA / 5.1 KW
Threephase Continuous Power: 17.5 KVA / 14 KW
Threephase Maximum Power: 19.2 KVA / 15.3 KW
Power Factor cos fiφ: 0. 8
VAC voltage: 230 / 400 V
Frequency (Hz): 50
Voltage regulator: AVR
Start framework: Manual / Automatic
Engine: BRIGGS & STRATTON 31HP
RPM: 3000
Power supply: Gasoline
Emissions standard: STAGE V
Fuel tank capacity: 60 l
Fuel consumption @ 75 % load: 6.5 l/h
Autonomy @ 75 % load: 9.2 h
Sound pressure: 72 dB(A) @ 7m
Length: 1200 mm
Width: 730 mm
Height: 930 mm
Net weight: 280 Kg

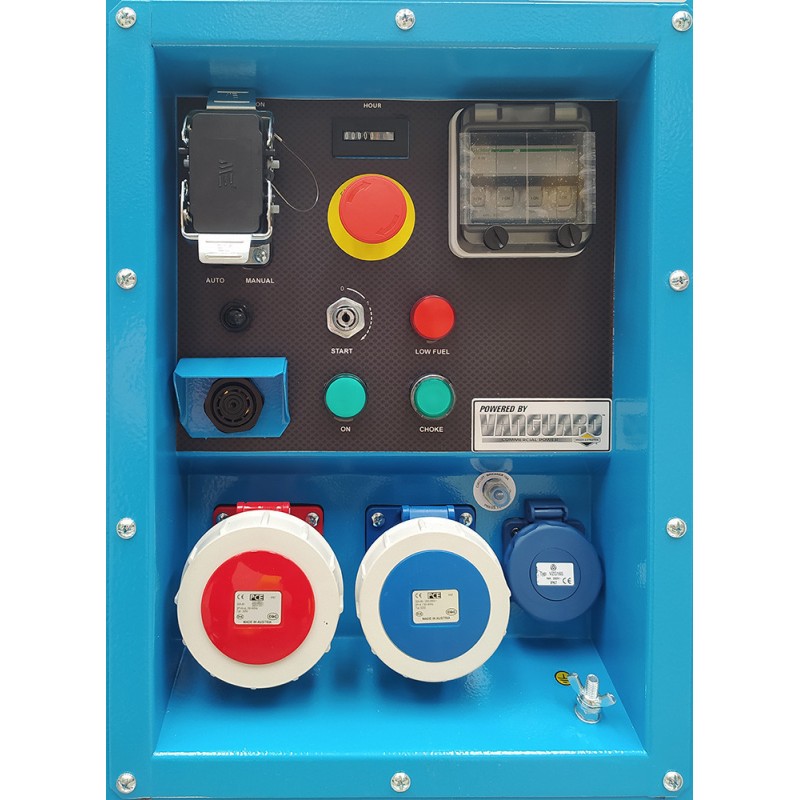

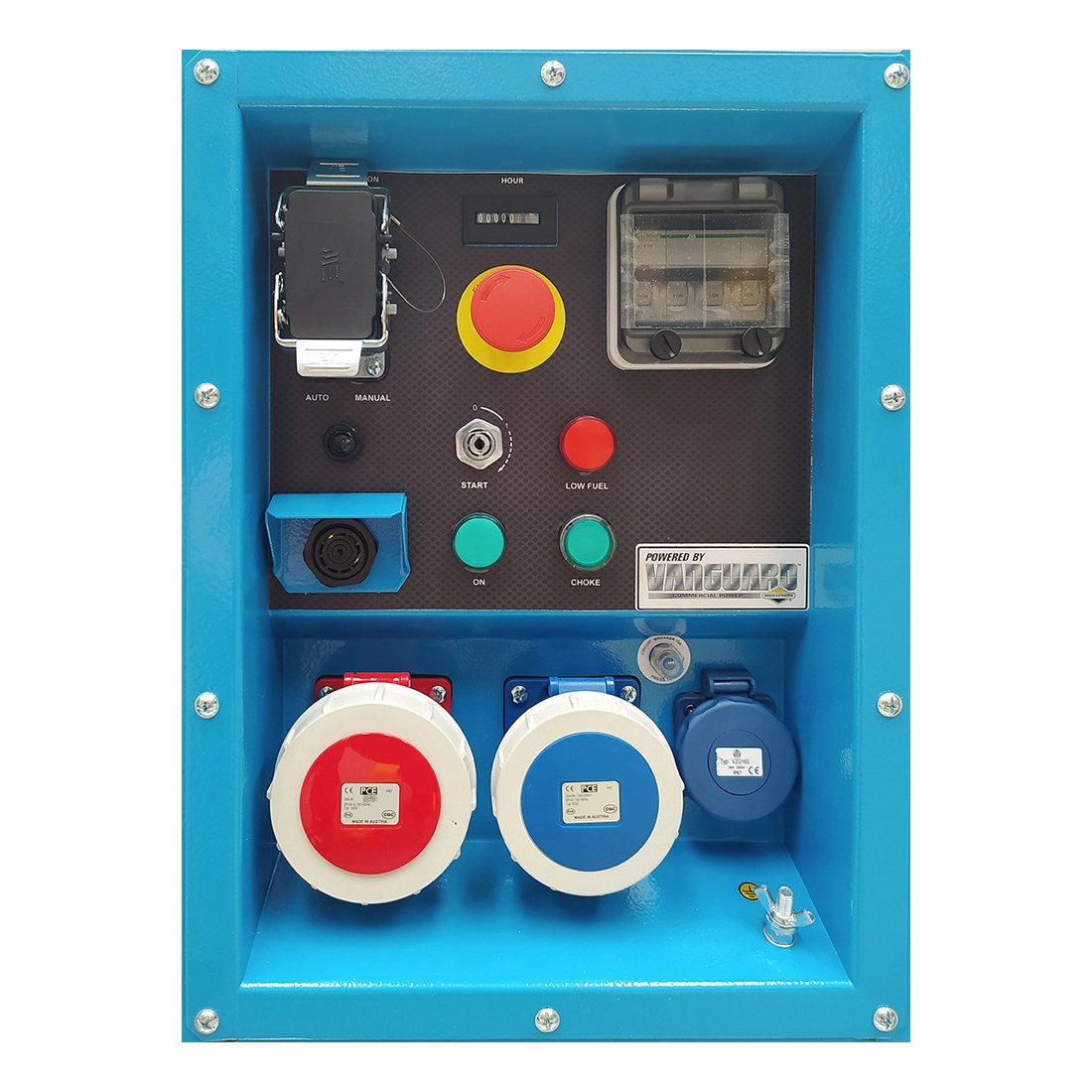

Manual electric panel with:
n. 1 CEE 16A 3P 230V socket
n. 1 CEE 32A 5P 400V socket
General switch
connector for ATS
hour counter
Discover the full range of current generator on our catalog to find the one that best suits your needs.
Pictures and technical data not binding.
